AMR-L3-600 LANTENT MOBILE ROBOTS
FUNCTIONAL CHARACTERISTICS
■ Autonomous Positioning And Navigation:
Accurate positioning is achieved by using QR code navigation, laser SLAM navigation, inertial navigation and other technologies.
■ Flexible Motion Control:
Adopt two-wheel differential drive, support forward, backward, rotation and other motion control, the movement process is smooth and supple.
■ Smart Power Management:
Supports multi-level power threshold control, autonomously charges when the battery is low, and returns to work autonomously after charging is completed.
■ Multiple Security Protection:
It supports multi-level safety protection such as front/rear longdistance detection, front short-distance detection, 360°collision detection, front/rear emergency stop button, etc., to achieve safe and reliable motion control.
■ Large Cargo Handling:
Maximum support for 1000kg cargo lifting, handling, rotation and lowering.
■ Device Status Indication:
Indicates the various states of the vehicle through multiple lighting effects.
■ Wireless Network Communication:
It supports WIFI and 5G network communication, and the network coverage area runs without obstacles.
■ Friendly Human-Computer Interaction:
Support LCD screen, sound alarm prompt.

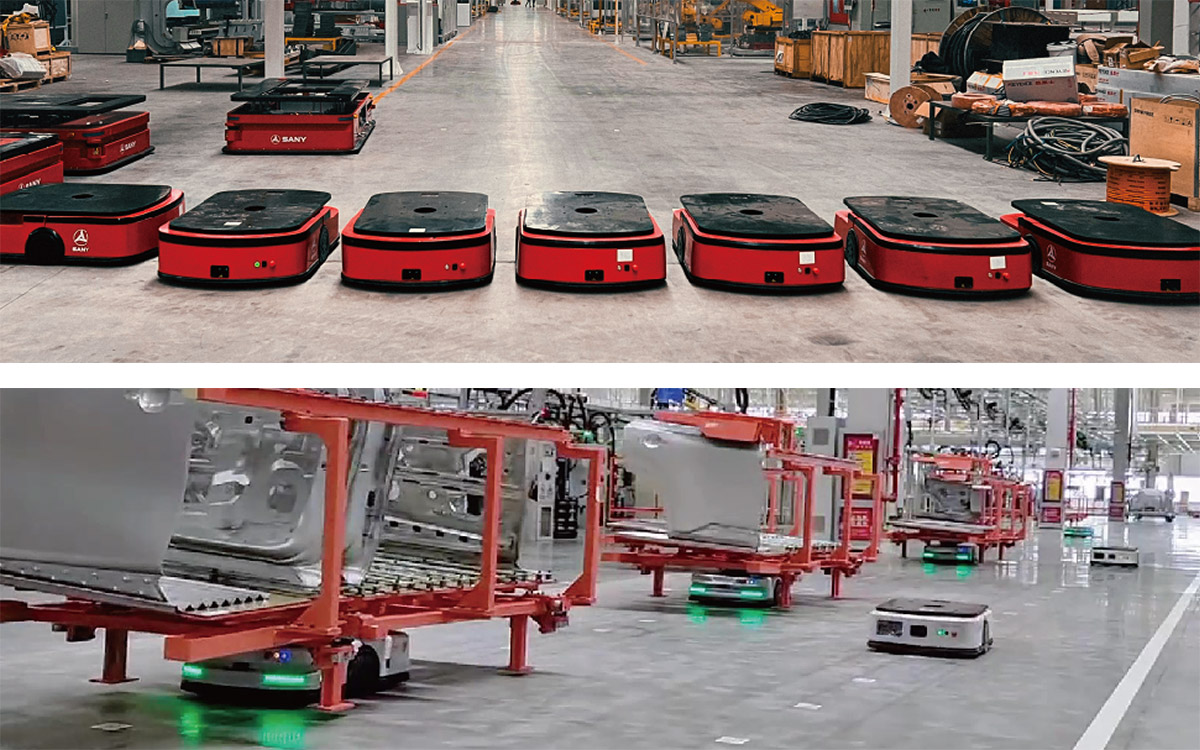

APPLICATION SCENARIOS:
3C, express delivery, e-commerce, automobile, manufacturing, medicine, tobacco, food and beverage and other industries, used in the production and logistics links of various enterprises including shelf handling,raw material/semi-finished product handling, parts receiving and dispatching, and material transfer.

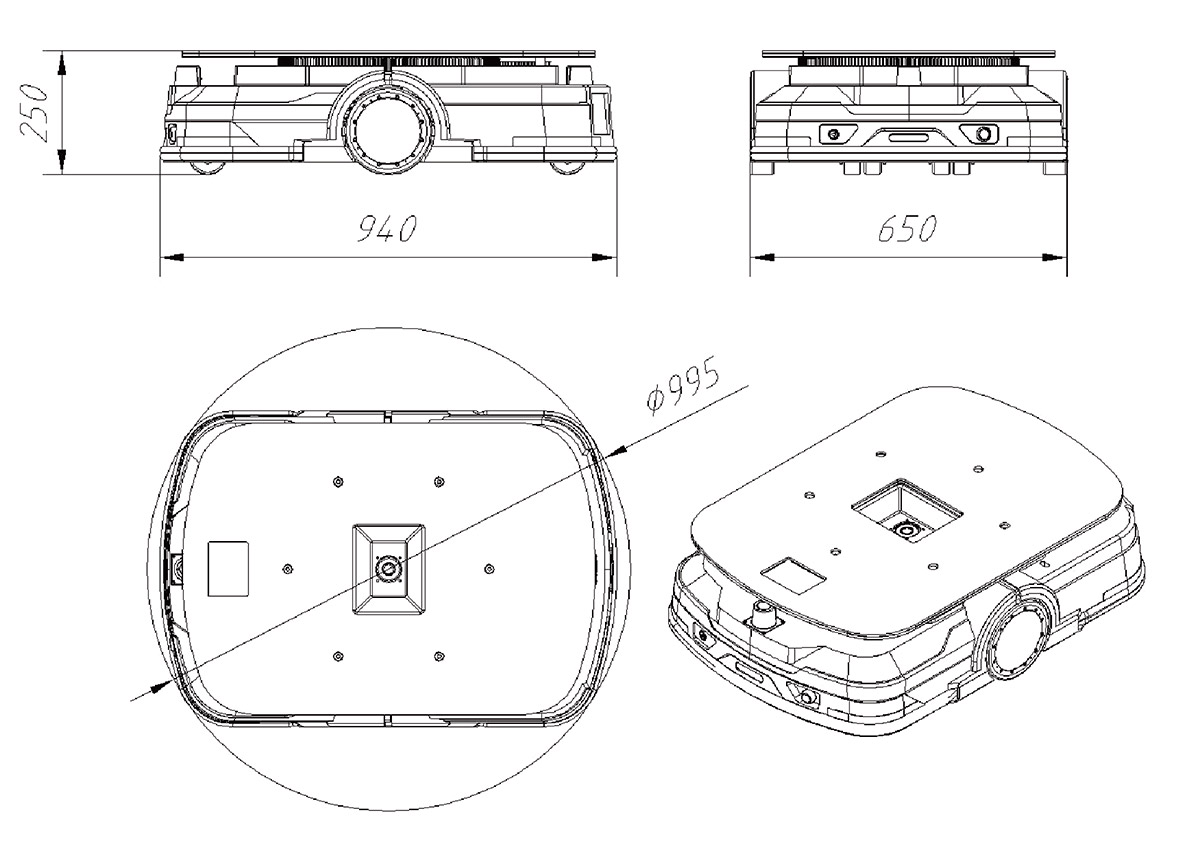

PRODUCT SIZE:
TECHNICAL PARAMETER:
|
Content
|
Index
|
Parameter
|
|
|
Basic parameters
|
Rated load(kg)
|
600/1000
|
|
|
Overall dimension(mm)
|
940(L)*650(W)*250(H)
|
||
|
Rotation diameter(mm)
|
995
|
||
|
Lifting height(mm)
|
60
|
||
|
Ground clearance(mm)
|
25
|
||
|
Lifting table size(mm)
|
850*600
|
||
|
Lifting mode
|
Electric lift
|
||
|
Dead load(kg)
|
130
|
||
|
5g network module
|
Possess
|
||
|
Navigation mode
|
QR code, SLAM hybrid navigation
|
||
|
Liquid crystal display
|
Optional
|
||
|
Safety protection
|
Front side protection
|
270° laser
|
|
|
Rear side protection
|
270° laser optional
|
||
|
Anti collision strip detection
|
360° detection
|
||
|
Emergency stop button
|
One at the front and one at the back
|
||
|
Light warning
|
Possess
|
||
|
Voice prompt
|
Optional
|
||
|
3D obstacle avoidance
|
Optional
|
||
|
Athletic performance
|
Rated running speed(no load)(m/s)
|
2
|
|
|
Rated acceleration(no load)(m/s²)
|
1
|
||
|
Positioning accuracy(mm)/(°)
|
±10/±1
|
±5/±0.5
|
|
|
Battery performance
|
Rated voltage(V)
|
48
|
|
|
Capacity(Ah)
|
28
|
||
|
Number of charging cycles(Times)
|
Full charge and discharge 1500
|
||
|
Operating time under rated condition(H)
|
≥8
|
||
|
Charging time(H)
|
Charging duration after full discharge ≤1.5
|
||
|
Battery type
|
Lithium iron phosphate battery
|
||
